RT4119W Racing Seat

Brand: Racetech Manufacturing
Code: RT4119W-111
Availability: In Stock
$2,939.99 Ex Tax: $2,556.51

Available Options

* Size:

Add Side Brackets:

Add Back Bracket:

Add Roll Cage Clamps:

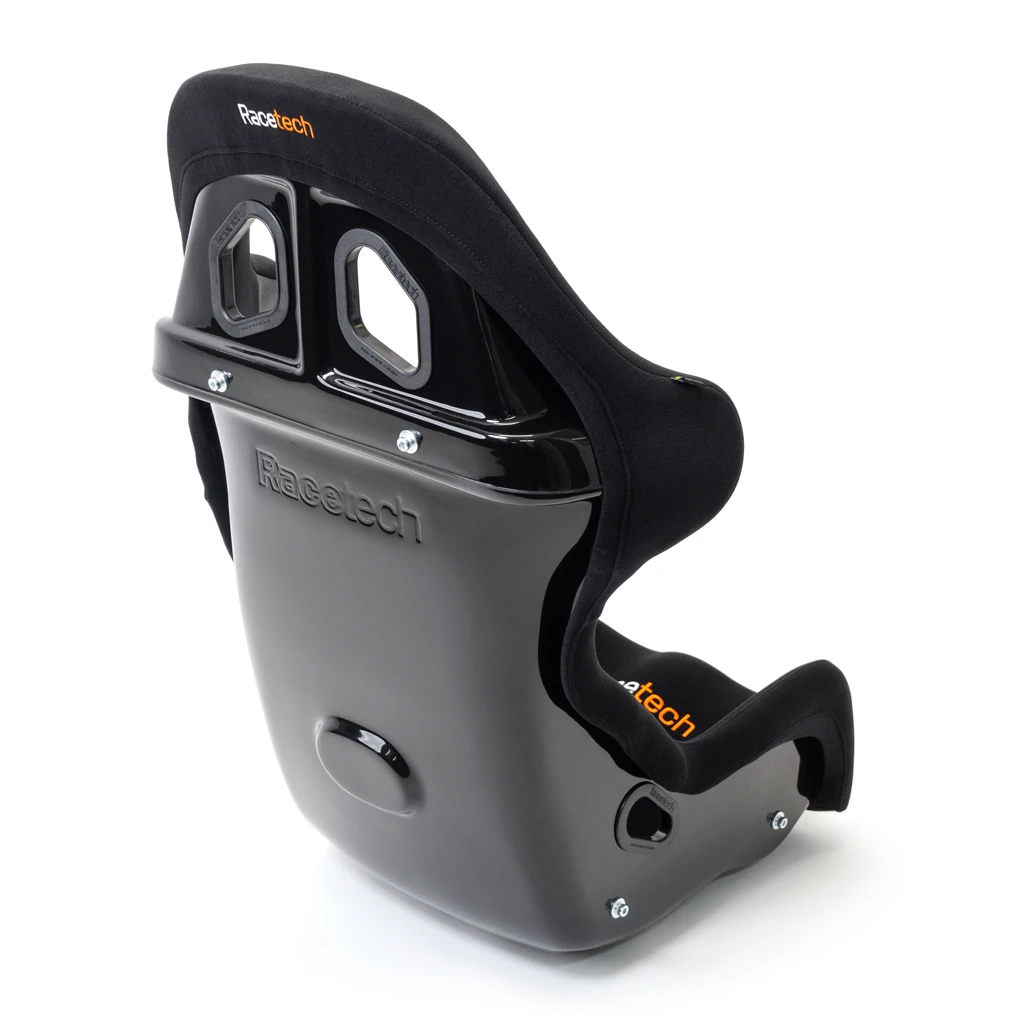

We've taken our most popular seat, and given it the chop. The RT4119W (Wide) and RT4119WT (Wide and Tall) seats are based on the existing RT4119WHR and RT4119WTHR, but with the head restraints removed for improved visibility and access in a 'track day' type vehicle. This seat retains our unique, patented, back mount design to give the driver ultimate support and a 'feel' of the chassis not available in basic floor-mounted seats. Customise your seat further with low base cushions or add side cushions for support in the thigh area. These 119 seats without head restraints are not FIA homologated, but they are built using the same proven techniques and lamination as those that have passed the FIA tests.

Dimensions and Weights:

Model Material FIA A B C D E F G M Shell Weight Total Weight
RT4119W Fibreglass No 63 58 41 50 47 87 62 44 7.0 9.1
RT4119WT Fibreglass No 63 64 41 50 47 93 68 44 7.8 9.9
            dimensions in cm   weights in kg

Dimensions KeySeat Dimension Guide

Common Applications 'Track day' cars where FIA homologation is not required
Stock Colour / Material
Gelcoat Gloss black
Seat Cover Black fire-retardant fabric
Wear Patches Black perforated leather
Homologation N/A
Shell Construction Fibreglass Composite (GRP)
Shell Weight From 7.0kg
Side Mount Hole Centres 295mm
Back Mount Hole Centres 250mm
Bolt Torque (Zinc) 30Nm / 22 ft lb
Head Restraint None
HANS Compatible Yes
Harness Compatibility Up to 6-point harness
Large Harness Guides Yes
Air Ducting None
Back-mount Compatible Yes
