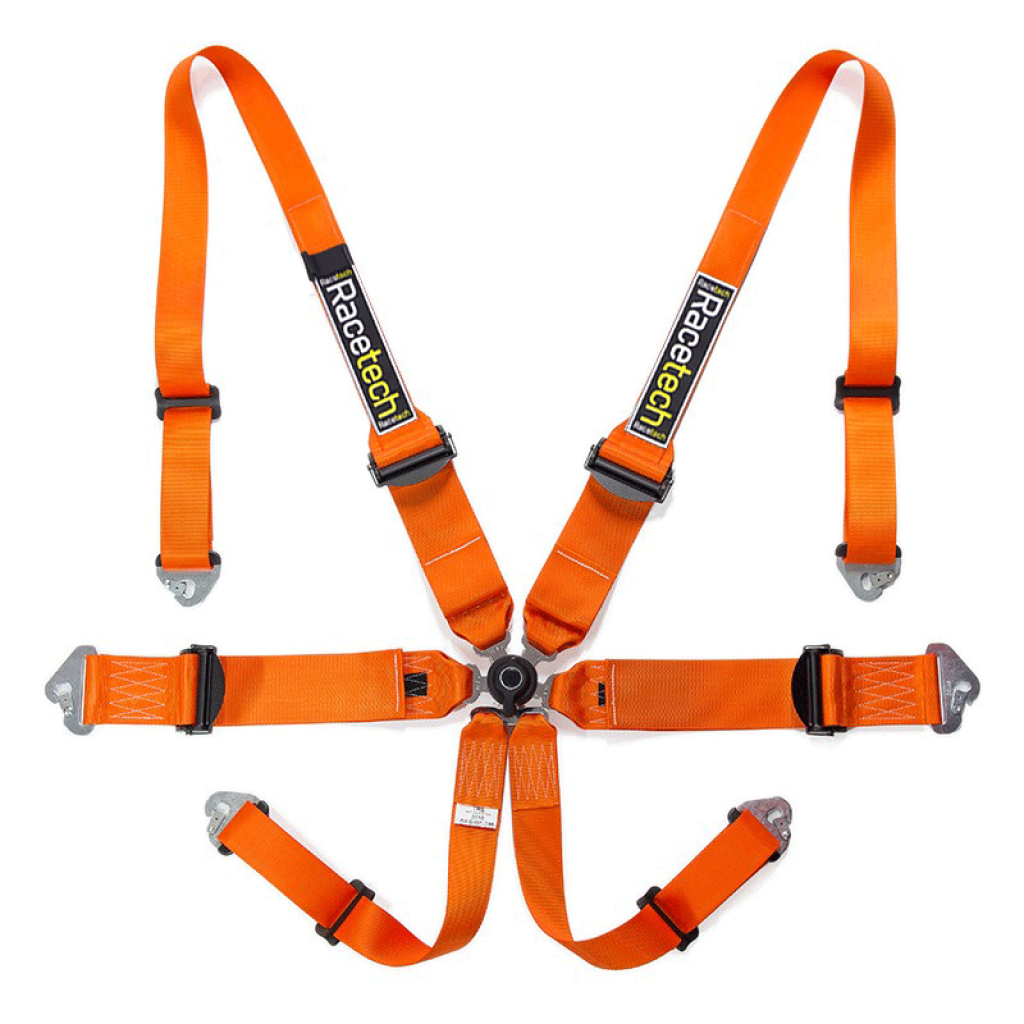

Magnum 6-point FHR Lightweight Harness

The top-of-the-line 6-point harness with 50mm (2") shoulder straps over the HANS/FHR device. This harness is FIA approved, but only when used correctly in conjunction with a HANS/FHR device. Features 75mm (3") lap straps and 50mm (2") crutch straps, which lock in via a 'T' bar to the lightweight cam-lock. Includes snap-hooks, eye-bolts and instructions for mounting in your vehicle. Snap-hooks can be removed to allow wrap-style fixing to your rollcage or harness bar. Please tick the box (above) to add backing/stress plates to your order.

Featuring lightweight, smooth-sliding alloy adjusters on both the shoulder and lap belts, this harness weighs just 3.0kg.

2022 stock, not valid for FIA-approved use after 2027.

Application
Common Applications	Professional circuit and rally where a HANS/FHR device is worn.
Technical
Weight	3.0kg
Harness Technical
Homologation	FIA 8853/2016 (5 year life)
Fastener	Cam-lock (fixed to crutch straps)
Shoulder Strap	3" (75mm), down to 2" (50mm) over HANS/FHR device
Lap Strap	3" (75mm) wide
Crutch Strap	2" (50mm) wide
Shoulder Strap Length	67" (1700mm) fully extended
Lap Strap Length	830mm fully extended
Crutch Strap Length	820mm fully extended
Fittings	6x snap-hooks
Hardware	6x 7/16" UNF eye bolts
