RT4119HRW Racing Seat

Brand: Racetech Manufacturing
Code: RT4119HRW-111
Availability: In Stock
$3,779.99 Ex Tax: $3,286.95

Available Options

* Size:

Add Side Brackets:

Add Back Bracket:

Add Roll Cage Clamps:

Add Ram Air Kit:


Building upon the successful 129 Series seats, Racetech offers the same ergonomic form and incredible feature set but in a lighter and more affordable package. Used by many professional teams at both national and international level and in a range of motorsport disciplines including circuit, rally, drift and drag racing. There are four sizes available (standard, wide, tall and wide-tall). Customise your seat further with low base cushions or add side cushions for support in the thigh area. The 119 series seats are compliant with FIA 8855-1999 standards *.

* To comply with FIA 8855-1999, the 119 series seats (except the RT4119HRW) must be back-mounted to the rollcage at shoulder level. Back-mounting can be achieved using parts RTB2115B and RTB2005C, see instructions here. Back-mounting improves seat strength and stability during an impact, increases driver 'feel' of the chassis, and reduces driver fatigue. See the explanation video here.

Dimensions and Weights:

Model Material FIA A B C D E F G H I J K L M Shell Weight Total Weight
RT4119HRW Fibreglass 8855 62 58 37 46 47 92 62 49 36 77 56 73 40 7.6 9.6
RT4119WHR Fibreglass 8855 67 58 41 50 47 92 62 49 36 77 56 73 44 7.9 9.9
RT4119THR Fibreglass 8855 62 64 37 46 47 98 68 49 36 83 61 74 40 7.9 9.9
RT4119WTHR Fibreglass 8855 68 64 41 50 47 98 68 49 36 83 61 74 44 8.3 10.4
            dimensions in cm             weights in kg

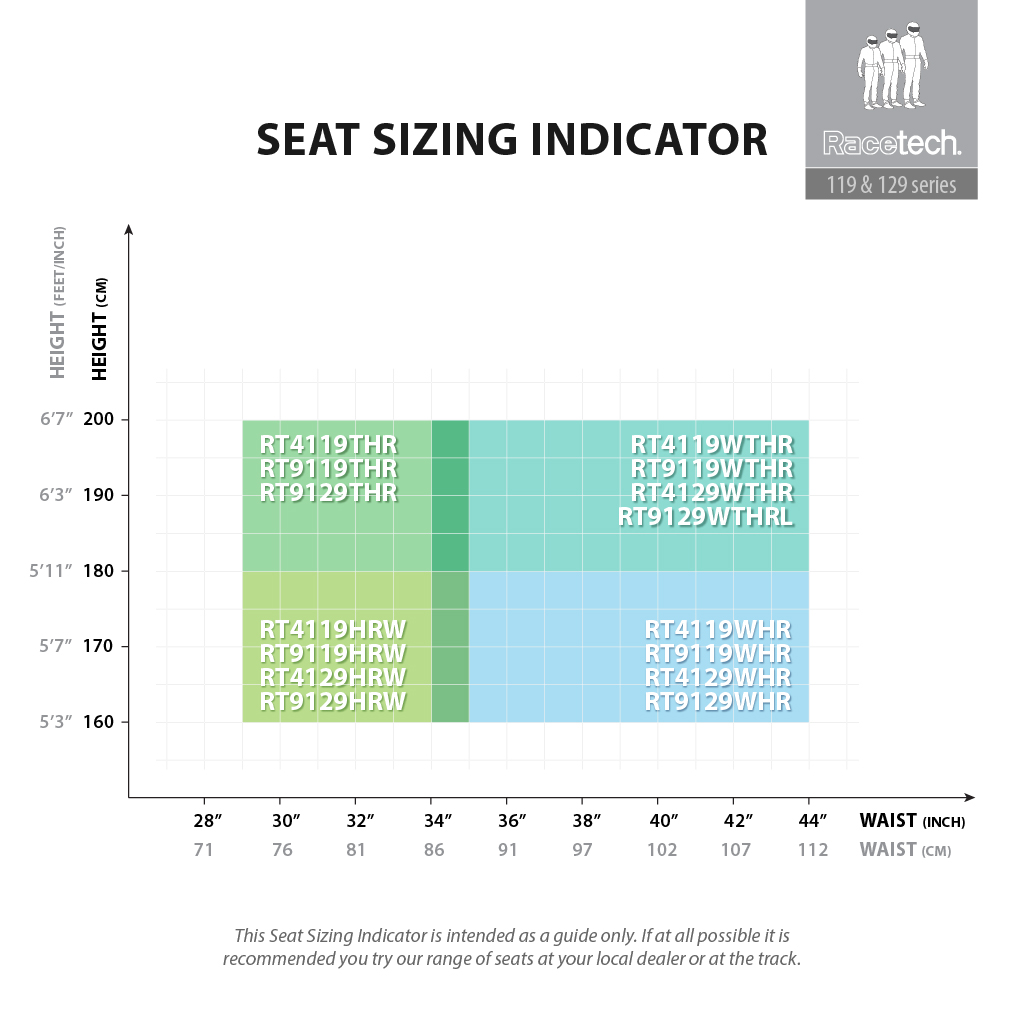

Dimensions KeySeat Dimension Guide

Common Applications National to international-level circuit and rally
Stock Colour / Material
Gelcoat Gloss black
Seat Cover Black fire-retardant fabric
Wear Patches Black perforated leather
Homologation FIA 8855-1999 Approved
Shell Construction Fibreglass Composite
Shell Weight From 7.6kg
Side Mount Hole Centres 295mm
Back Mount Hole Centres 250mm
Bolt Torque (Zinc) 30Nm / 22 ft lb
Sizes HRW - Standard
THR - Tall
WHR - Wide
WTHR - Wide & Tall
Head Restraint Integrated head restraint
HANS Compatible Yes
Harness Compatibility Up to 6-point harness
Large Harness Guides Yes
Air Ducting Yes - vented to the driver's lower back
Back-mount Compatible Yes
